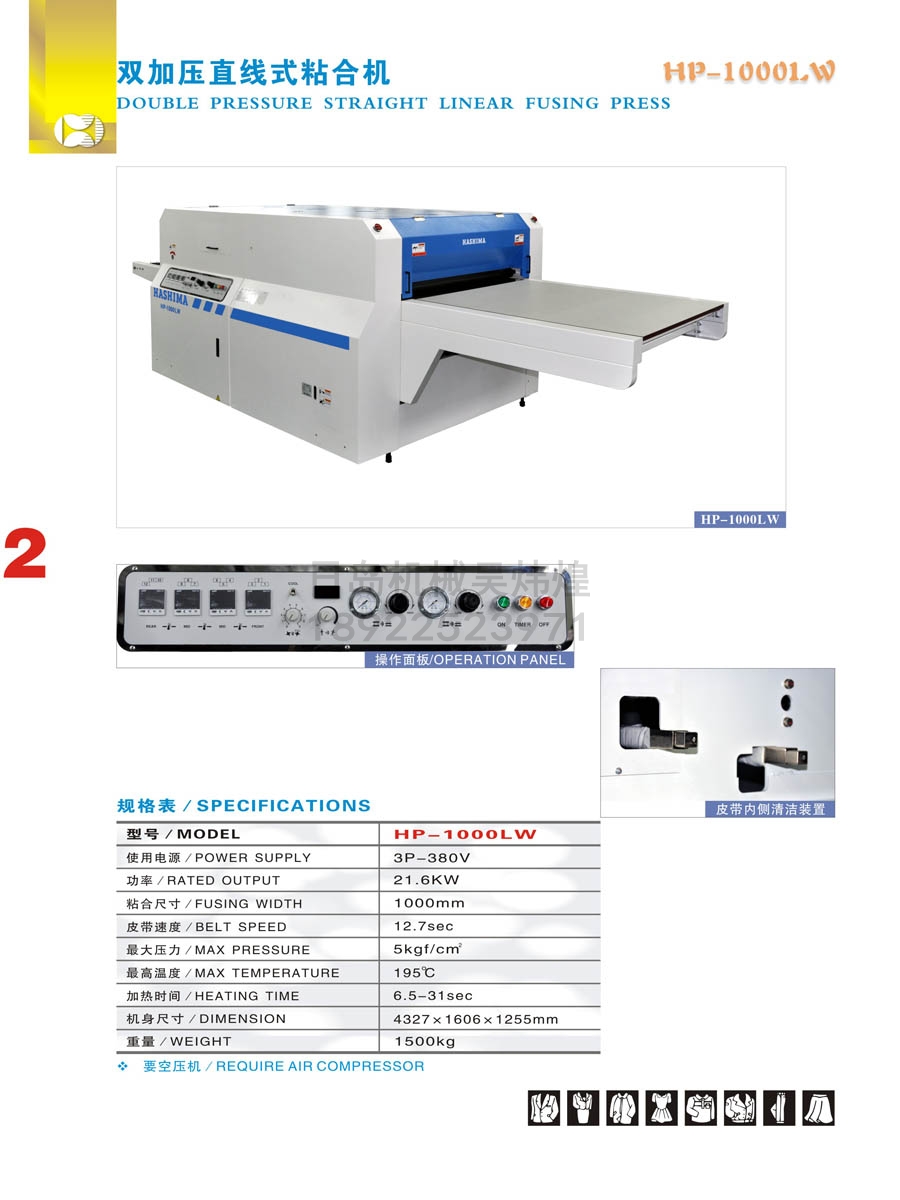

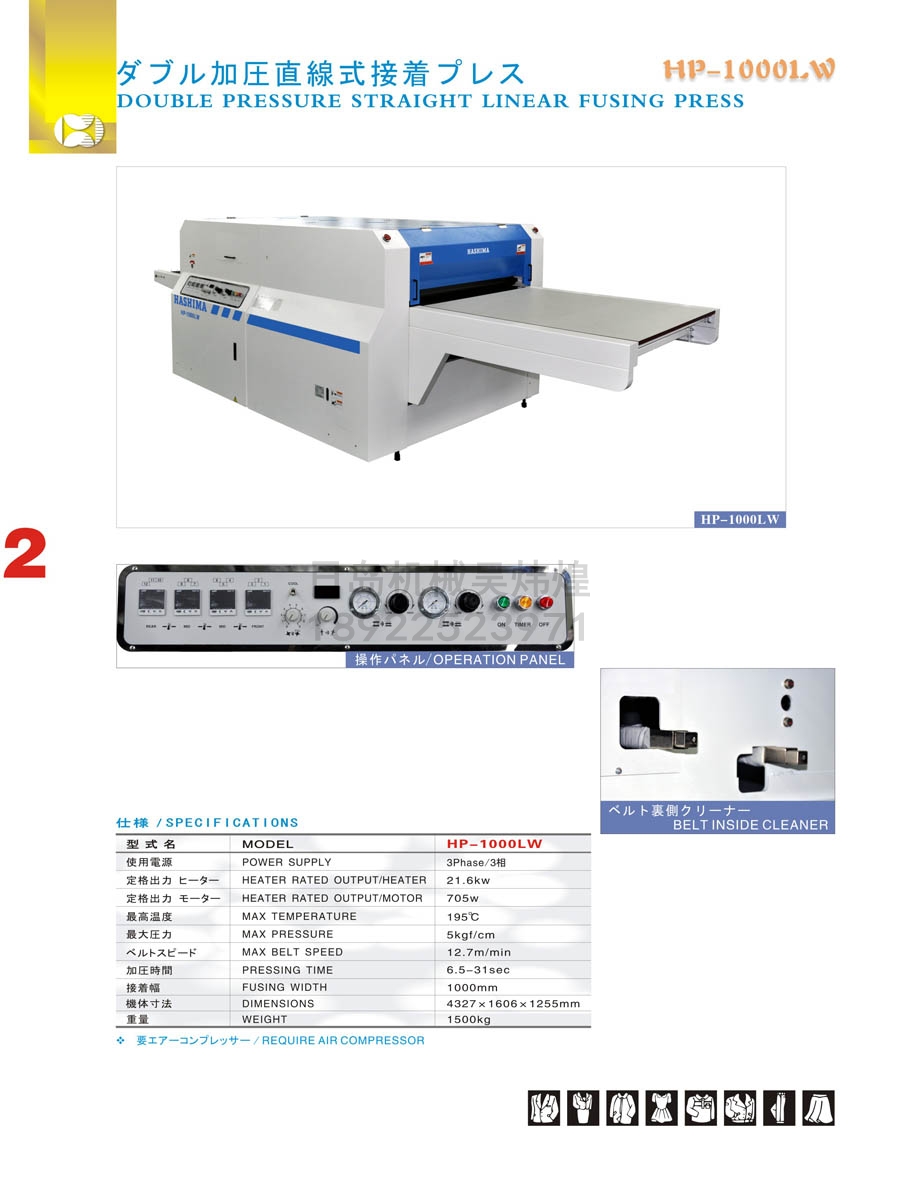

| MODEL | HP-1000LW |
| POWER SUPPLY | Three phase |
| RATED OUTPUT | HEATER：21.6kw |
| MOTOR：705W | |
| FUSHING WIDTH | 1,000mm |
| MAX.BELTSPEED | 12.7m/min |
| MAX.PRESSURE | 5kg/cm2 |
| MAX.TEMPERATURE | 198℃ |
| HEATING TIME | 6.5～31sec. |
| DIMENSIONS | 4,327 X 1,606 X 1,255mm |
| WEIGHT | (Aporox)1,500kg |
| FEATURES |

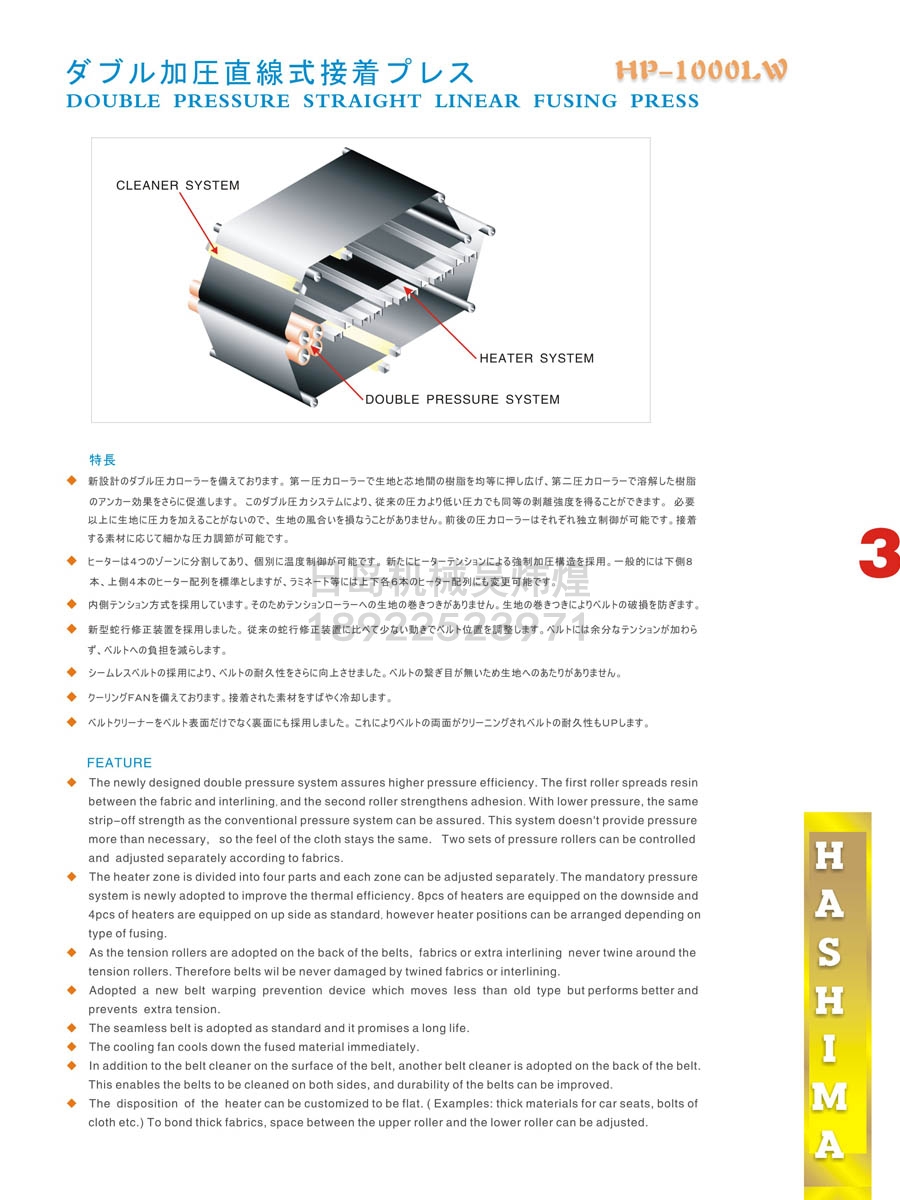

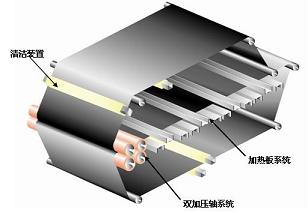

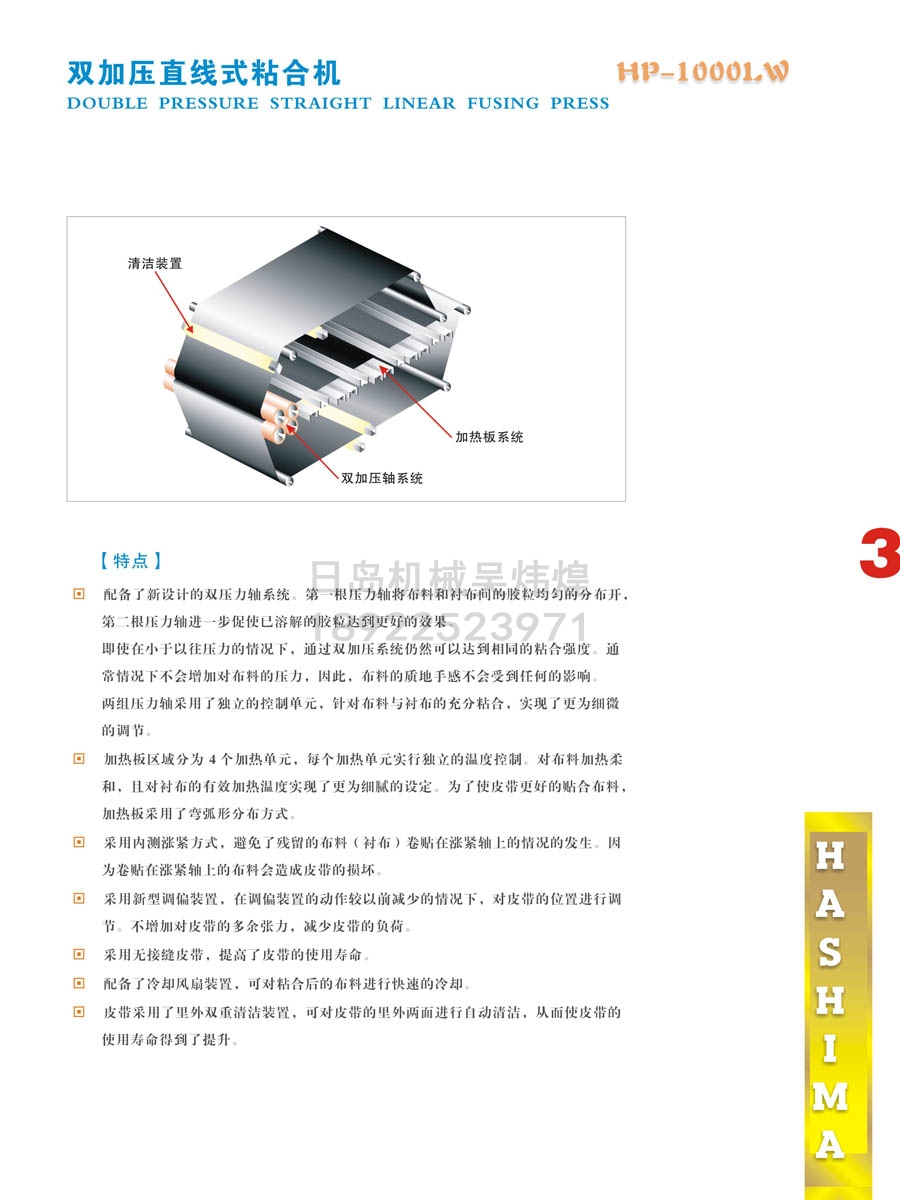

□The Newly Designed Double Pressure System assures Higher Pressure Efficiency. The first roller spreads resin between the fabric and interlining, and the second roller strengthens adhesion. □The Heater Zone is devided into Four parts and each Zone can be adjusted Separately. The Mandatory Pressure System is newly adopted to improve the Thermal Efficiency. □As the Tension Rollers are adopted on the Back of the belts, Fabrics or extra Interlining never Twine around the Tension Rollers. □Adopted a New belt warping Prevention device which moves less than old type but performs Better and prevents Extra Tension. □The Seemless Belt os adopted as standard and it promises a Long Life. □The Second Cooling fan cools down the fused ,Material immediately. □In addition to the Belt Cleaner on the surface of the Belt, another belt cleaner is adopted on the Back of the Belt. □The Dispositon of the Heater can be customized to be Flat. |
